EXT 420 Extraction complete kit. Pull (recoil) start.

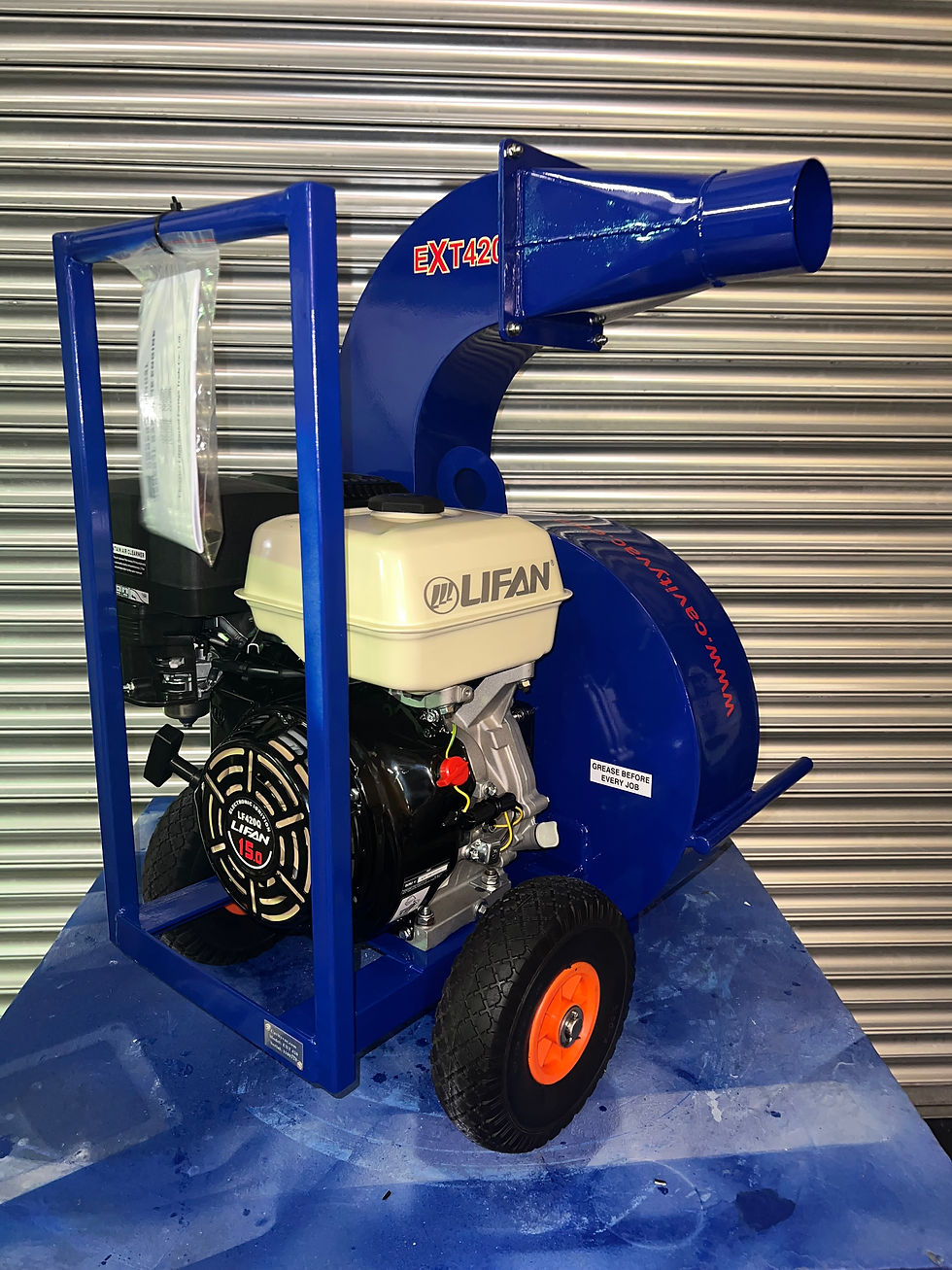

EXT 420 Complete kit pull start with 15m suction hose

£3,900.00Price
  • EXT 420 Extraction complete kit

    1 x EXT 420 Extraction machine
    1 x 15m 100mm heavy duty extraction hose
    2 x 100mm Quick release clamps
    1 x 15m heavy duty air hose (claw to claw coupling)
    2 x 10m heavy duty air hose (claw to quick release coupling)
    1 x 2 into 1 air hose adapter
    2 x Directional wands
    1 x Agitating whip
    1 x In-wall catcher
    4 x Jumbo waste extraction bags
    10 x hole blockers (cut down cavity brush)

    Engine specifications:

    Overhead valve 15hp (OHV) design, lower operation temperature, powerful drive and reliability and durability, and it saves more oil.
    Cast iron casing does not only effectively improve lubrication, but also makes engine more wear-resistant and prolongs engine life.
    Automatic alarm and stop at low oil level, which prevents the engine to work at low oil level and gives more protection to engine.
    Metal cam and forged crankshaft makes engine more reliable and durable.
    Engine type Single cylinder,4stroke, forced cooling ,OHV
    Displacement 420cc
    Bore×Stroke 90mm×66mm(3.54″×2.6″)
    Net power 9KW/3600rpm
    Net torque 26.5N.m(19.5 lbf.ft)/2500rpm
    Idle speed 1450±150r/min
    Compression ratio 8.3:1
    PTO shaft rotation Anti-clockwise(from PTO side)
    Noise(≤7m) ≤70dB(A)
    Ignition system Transistorized magneto ignition
    Starting system Recoil start/Electric-start
    Carburetor Butterfly
    Lubrication system Splash
    Governor system Centrifugal mass type
    Air cleaner Semi-dry,dual element
    Oil capacity 1.1L(0.29gal)
    Fuel tank capacity 6.5L(1.7gal)
